Fortinet Fortigate Firewall
Fortinet Firewall acts as a reliable guard for your online world. It offers solid protection against various online issues. It’s famous for its smart features that keep networks, data, and apps safe. Businesses can choose from different models to find security that fits their needs perfectly. Your online things will stay super safe, just the way you want.
We understand what your organization needs

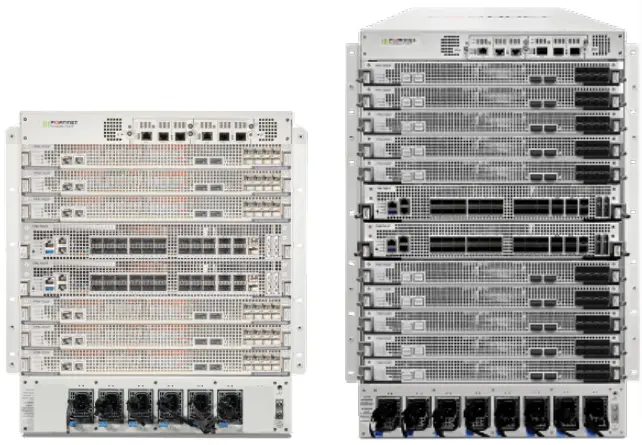

FortiGate 7121F
THREAT PROTECTION
520 Gbps
USB Ports-2
Console Ports-14
Onboard Storage-4x 4 TB SSD
Firewall Throughput
(Packet per Second)
1680 Mpps
SSL-VPN Throughput – 13.7 Gbps
FortiGate 7081F
THREAT PROTECTION
312gbps
USB Ports-2
Firewall Throughput (Packet per
Second)
1680 Mpps
SSL-VPN Throughput – 13.5 Gbps
Onboard Storage – 4x 4 TB SSD
FortiGate 6500F
THREAT PROTECTION
100Gbps
4x 40/100 GE QSFP28 slots, 24x 1/10/25 GE SFP28 slots, 2x 1 GE RJ45 management ports,
2x 10 GE SFP+ HA ports, 1x 1/10 GE SFP+ management port, and 3x AC power supplies.
FortiGate 6300F
THREAT PROTECTION
60 Gbps
USB Port 1
Console Port 1
SSL-VPN Throughput 9 Gbps
Description
4x 40/100 GE QSFP28 slots, 24x 1/10/25 GE SFP28 slots, 2x 1 GE RJ45 management ports,
2x 10 GE SFP+ HA ports, 1x 1/10 GE SFP+ management port, and 3x AC power supplies.
FortiGate 4800F
THREAT PROTECTION
75 Gbps
USB Port (3.0) – 1
Console Port – 1
Description
8x 400GE/200GE QSFP-DD slots, 12x 200GE/100GE/40GE QSFP56/28 slots and 12x
50GE/25GE/10GE SFP56/28 slots, 2 x 10GE RJ45 Management Ports, SPU NP7 and CP9
hardware accelerated, and 4 AC power supplies.
FortiGate 4400F
THREAT PROTECTION
75 Gbps
USB Port (3.0) 1
Console Port 1
Description
12x 100GE/40GE QSFP28 slots and 18x 25GE/10GE SFP28 slots, 2 x GE RJ45 Management
Ports, SPU NP7 and CP9 hardware accelerated, and AC power supplies.
FortiGate 4200F
THREAT PROTECTION
45 Gbps
USB Port -1
Console Port -1
Description
SSL-VPN Throughput -16 Gbps
8x 100GE/40GE QSFP28 slots and 18x 25GE/10GE SFP28 slots, 2 x GE RJ45 Management Ports,
SPU NP7 and CP9 hardware accelerated, 2 AC power supplies.
FortiGate 3700F
THREAT PROTECTION
75 Gbps
USB Ports (Client / Server) 1 / 1
Console Port 1
Description
4x 400 GE QSFP-DD slots, 4x ULL SFP28 slots and 20x 50 GE SFP56 slots (including 18x ports, 2x
HA ports), 2x 10GE RJ45 Management Ports, SPU NP7 and CP9 hardware accelerated, and 2 AC
power supplies.
FortiGate 3500F
THREAT PROTECTION
63 Gbps
USB Ports (Client / Server) -1 / 1
Console Port- 1
Description
6x 100GE/ 40GE QSFP28 slots and 32x 25GE/ 10GE SFP28 slots, 2x 10GE RJ45 Management
Ports, SPU NP7 and CP9 hardware accelerated, and 2 AC power supplies.
FortiGate 3200F
THREAT PROTECTION
45 Gbps
Ports:
USB 3.0 Port: 1
Console RJ45 Port: 1
Description:
The device features 4x 400 GE QSFP-DD slots, 4x ULL SFP28 ports, and 12x 50 GE SFP56 slots, which include 10x ports and 2x HA ports. Additionally, it comes with 2x 10GE RJ45 Management Ports. The FortiGate 3200F is equipped with hardware acceleration from SPU NP7 and CP9, and is powered by 2 AC power supplies.
FortiGate 3000F
THREAT PROTECTION
33 Gbps
Ports:
USB Ports (Client / Server): 1 / 1
Console Port: 1
Ethernet Ports:
6 x 100GE QSFP28 slots
16 x 10GE SFP+/25GE SFP28 slots (including 14x ports and 2x HA ports)
18 x 10G Base-T ports (including 2x MGMT ports)
Description:
The FortiGate 3000F is equipped with cutting-edge threat protection capabilities, boasting an impressive throughput of 33 Gbps. This robust security solution features a comprehensive port configuration.
FortiGate 2600F
THREAT PROTECTION
25 Gbps
Firewall Throughput (Packet per Second) 180 Mpps
USB 3.0 Port-1
Console RJ45 Port-1
Description
4 x 100GE/40GE QSFP28 slots, 16 x 25GE/10GE SFP28 slots, 16 x 10GE RJ45 ports, 2x 10G SFP+ HA
slots, 2x 1G MGMT ports, SPU NP7 and CP9 hardware accelerated, and dual AC power supplies.
Mid-Range (Campus)
Fortinet Mid-Range firewall

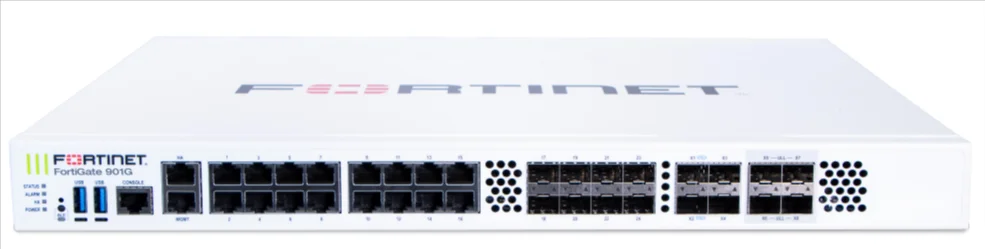

FortiGate 900G
THREAT PROTECTION
20 Gbps
Firewall Throughput (Packet per Second)- 229.5 Mpps
Concurrent Sessions (TCP) -16 Million

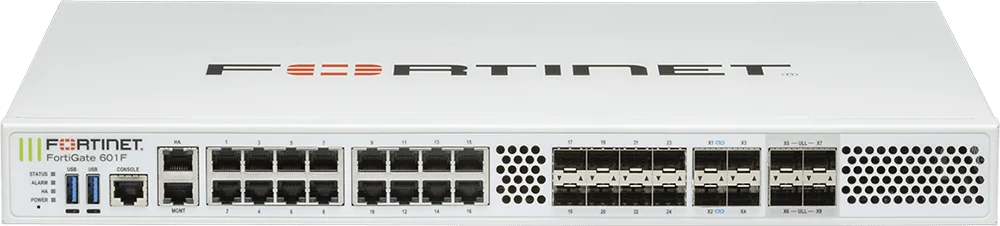

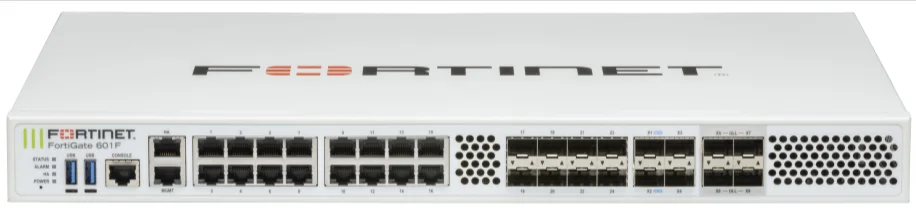

FortiGate 600F
THREAT PROTECTION
10.5 Gbps
Firewall Throughput (Packet per Second) 105 Mpps
Concurrent Sessions (TCP) 8 Million

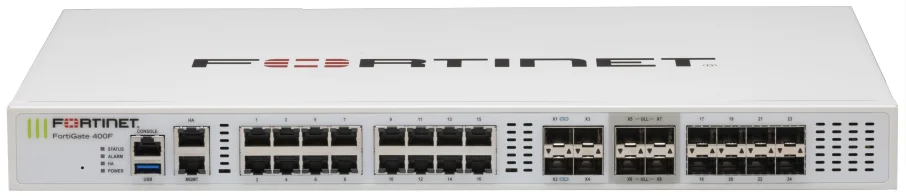

FortiGate 400F
THREAT PROTECTION
9 Gbps
Firewall Throughput (Packet per Second) 105 Mpps
Concurrent Sessions (TCP) 7.8 Million

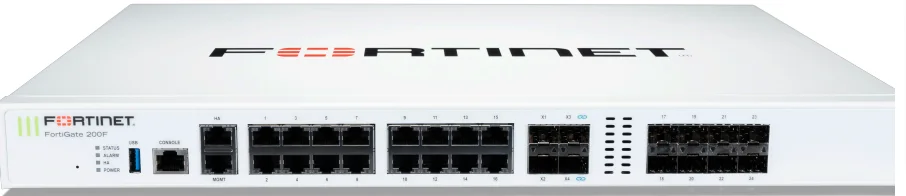

FortiGate 200F
THREAT PROTECTION
3 Gbps
Firewall Throughput (Packet per Second) 16.5 Mpps
Concurrent Sessions (TCP) 3 Million

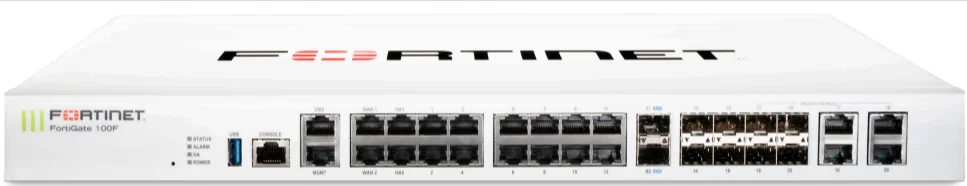

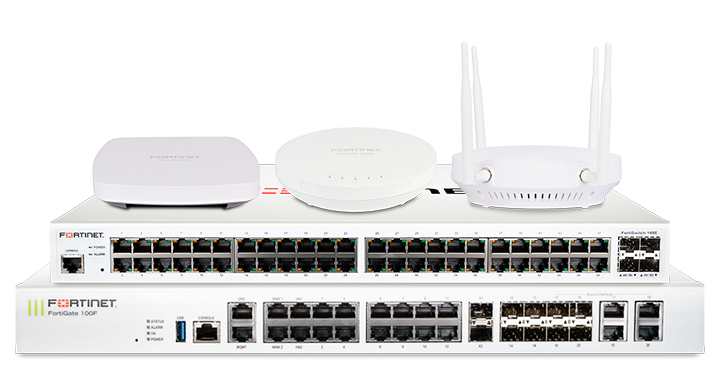

FortiGate 100F
THREAT PROTECTION
1 Gbps
Firewall Throughput (Packet per Second) 15 Mpps
Concurrent Sessions (TCP) 1.5 Million
Entry-Level (Branch)
Fortigate entry-level firewalls

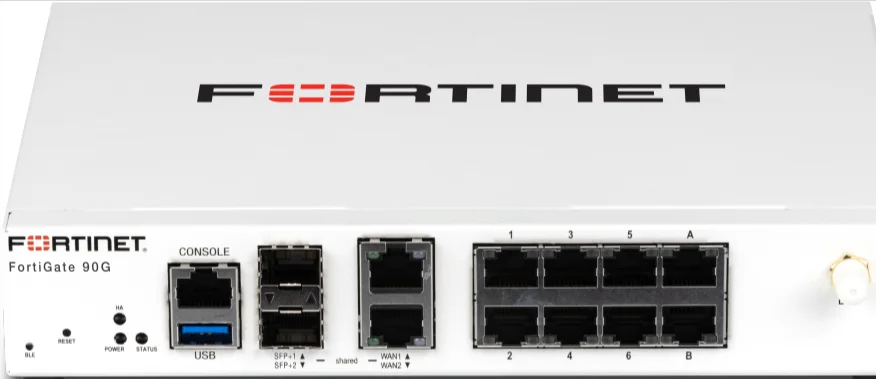

FortiGate 90G
THREAT PROTECTION
2.2 Gbps
Firewall Throughput
(Packets Per Second)
41.85 Mpps
Concurrent Sessions (TCP) 1.5 M

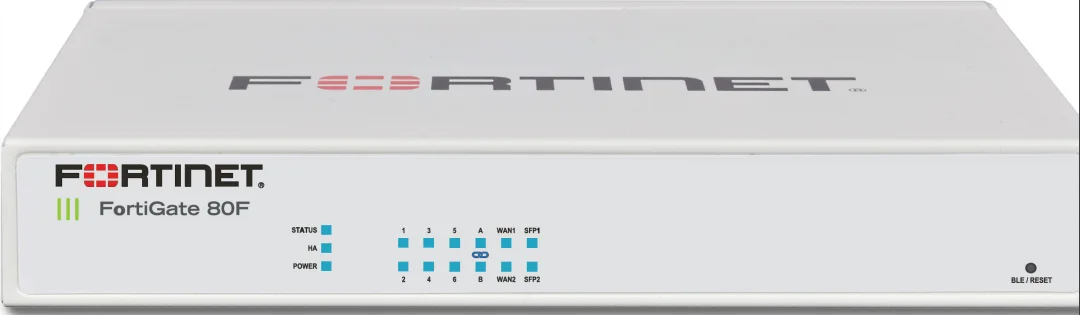

FortiGate 80F
THREAT PROTECTION
900 Mbps
Firewall Throughput (Packet per Second) 10.5 Mpps
Concurrent Sessions (TCP) 1.5 Million

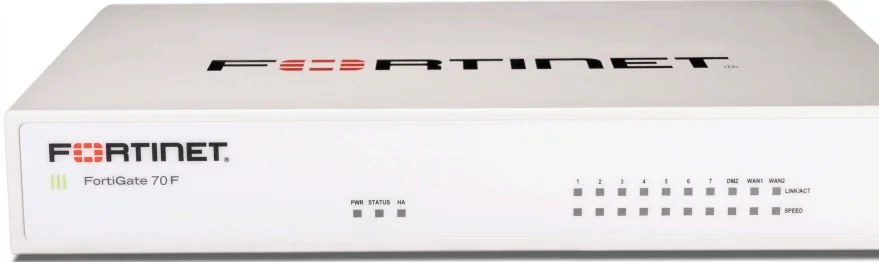

FortiGate 70F
THREAT PROTECTION
800 Mbps
Firewall Throughput
(Packets Per Second)
9 Mpps
Concurrent Sessions (TCP) 1.5 M

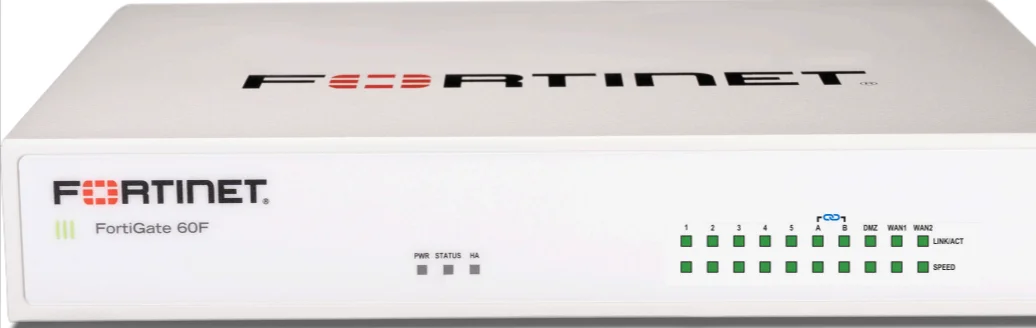

FortiGate 60F
THREAT PROTECTION
700 Mbps
Firewall Throughput (Packets Per Second) 9 Mpps
Concurrent Sessions (TCP) 700000

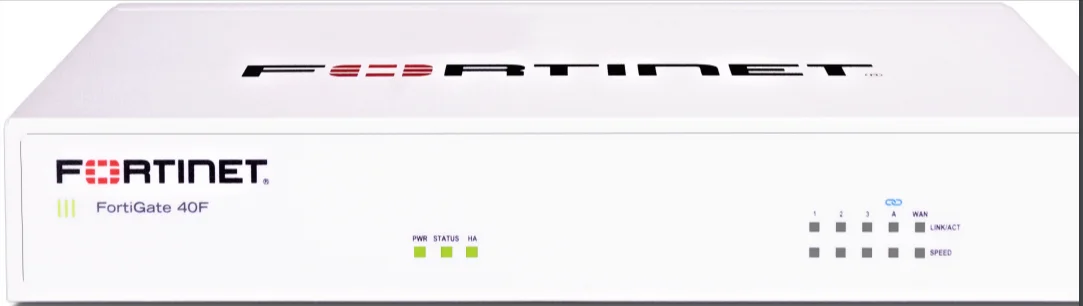

FortiGate 40F
THREAT PROTECTION
600 Mbps
Firewall Throughput (Packet per Second) 7.5 Mpps
Concurrent Sessions (TCP) 700 000
